Xspeedonline 12V-to-30V Power Supply for Star-Link Mini review

?Want a reliable way to power your Star-Link Mini from a 12V source without fuss?

Product Overview

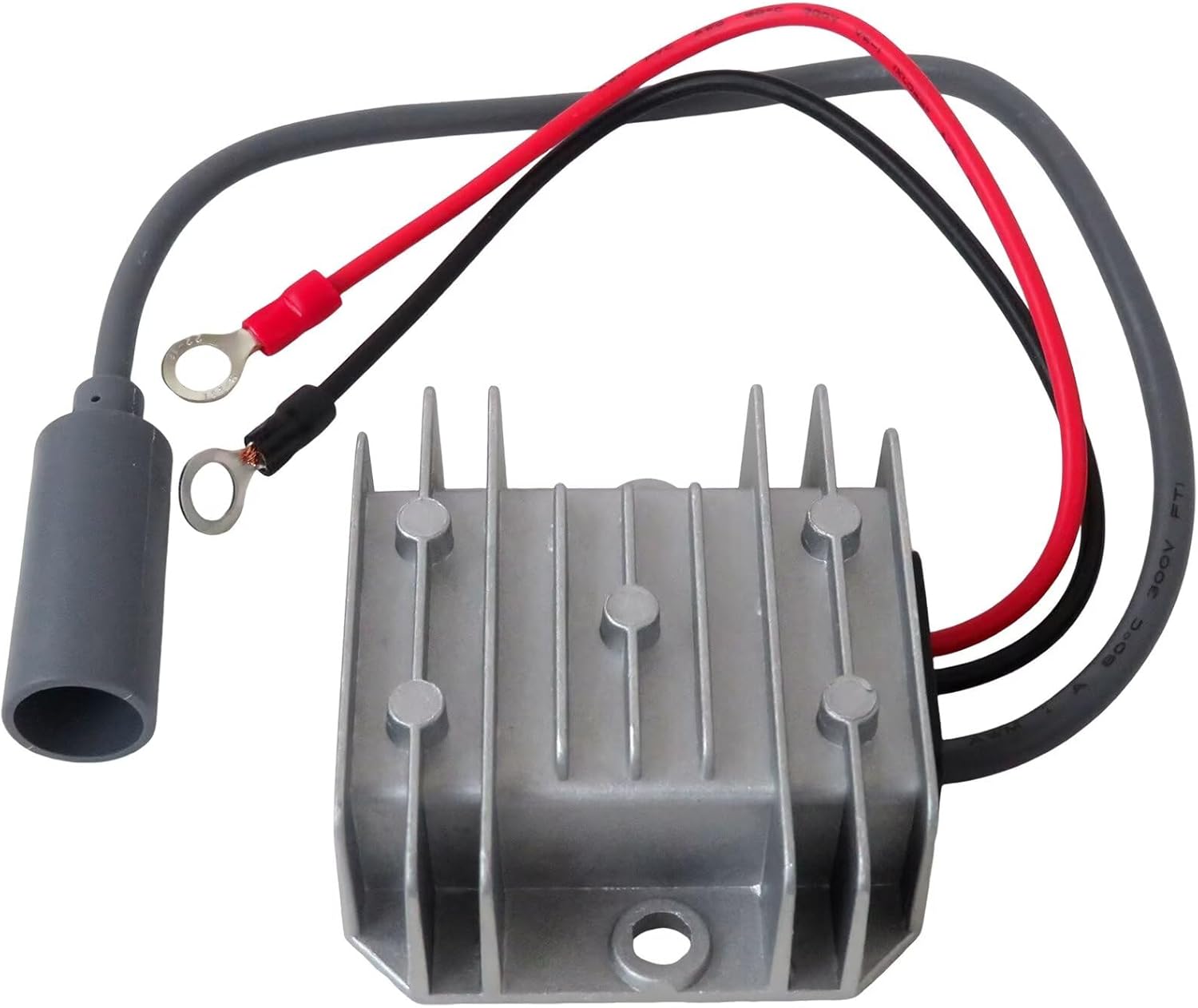

You’re looking at the Xspeedonline 12V to 30V Power Supply for Star-Link Mini, Waterproof DC Converter Adapter Cable, 9-28V Input 3.5A Output for RV/Car/Marine, Step-Up Voltage Booster Accessory. This unit converts a broad range of DC input voltages into the 30V/3.5A output your Starlink Mini needs, so you can run satellite internet from car batteries, RV systems, marine banks, or portable power stations. The design focuses on rugged outdoor use, easy battery connections, and built-in protections to keep things safe.

Why you might need this

If you want to use your Starlink Mini while off-grid, your vehicle or battery bank won’t provide 30V natively. This adapter fills that gap, letting you power the dish from typical 12V or 24V DC systems. You’ll appreciate the simplicity of direct battery terminals and the unit’s tolerance for long extension cable runs when you need to place the dish away from the power source.

Key Specifications

You’ll want a quick reference to the technical specs before deciding. The table below summarizes the most important numbers and compatibility details so you can compare at a glance.

Spec Category	Detail
Product Name	Xspeedonline 12V to 30V Power Supply for Star-Link Mini, Waterproof DC Converter Adapter Cable, 9-28V Input 3.5A Output for RV/Car/Marine, Step-Up Voltage Booster Accessory
Input Voltage Range	9V to 28V DC
Output Voltage	30V DC (regulated)
Output Current	Up to 3.5A
Typical Use	Starlink Mini power supply
Input Cable	16 AWG with O-ring terminals
Output Cable	18 AWG with DC plug for Starlink Mini
Long-Run Support	16 AWG up to 120m, 18 AWG up to 75m (extension wire recommendations)
Protection Features	Overcurrent, short circuit, overheat protection, battery over-discharge prevention
Cooling	Natural heat dissipation, intelligent voltage adjustment
Environmental	Water-resistant housing, suitable for outdoor use
Compatibility	12V/24V DC systems: car batteries, RV systems, marine batteries, solar generators, power stations

What’s in the box

You can expect a compact DC converter assembly with input and output leads ready for immediate connection. The package typically includes the converter cable with O-ring terminals on the input side and a Starlink-style DC plug on the output side. No complicated adapters are required to attach to battery posts, which makes setup faster and cleaner.

Build and Materials

You’ll notice the cables use 16 AWG on the input for durability and lower voltage drop over longer runs, while the output side is 18 AWG to match the Starlink plug size. The housing is designed for outdoor conditions and offers water resistance, while the O-ring terminals give you secure connections to battery posts without soldering or modification.

Compatibility and Use Cases

You can connect this to almost any 12V or 24V DC source you already have. That includes car batteries, RV house batteries, marine banks, solar generator outputs, and many common power stations that fall into the 9-28V input window. If your source sits within that range, you’ll be able to supply the stable 30V the Starlink Mini demands.

RV and Overland Use

If you travel with an RV or overland rig, you’ll find this helpful for powering internet while parked or boondocking. You can attach the O-ring terminals to your house battery posts and run the cable to the Starlink Mini mounted on the roof or a nearby tripod.

Marine Use

On a boat, the waterproof design and secure battery connection are beneficial. You’ll be able to run internet while anchored or docked, handling the somewhat harsher environment better than a standard indoor adapter.

Car and Tailgate Use

For tailgating or working on site, you’ll be able to power the Starlink Mini from a vehicle battery. Keep an eye on run time and battery health if you’re using the vehicle battery as the primary source — the converter helps prevent over-discharge but you should still monitor usage.

Solar and Off-Grid Power Stations

When you rely on a solar generator or battery station, this adapter provides a direct way to step up the available voltage to the necessary 30V. It’s particularly useful if your power station supports a DC output that sits in the 9-28V window.

Installation and Setup

You’ll find installation straightforward if you’re comfortable with basic battery connections. The O-ring terminals slide over battery posts and secure with a nut, so you don’t need to splice or solder. Connect the output plug to the Starlink Mini and mount the converter in a location where it can dissipate heat naturally, avoiding cramped, unventilated spaces.

Step-by-step quick guide

1. Turn off power sources and ensure batteries are disconnected or ignition is off on a vehicle.
2. Secure the O-ring terminals to the positive and negative battery posts. Tighten the nuts until snug and secure.
3. Route the output cable to the Starlink Mini, using appropriate grommets or cable management if running through panels or compartments.
4. Connect the DC plug to your Starlink Mini input.
5. Power on the battery source and confirm the Starlink Mini initializes and receives stable power.
6. Monitor initial operation for a few minutes to ensure no unexpected heating or voltage drop.

Placement considerations

You’ll want to mount or place the converter where it won’t be submerged and where ventilation is reasonable. Natural heat dissipation is part of the design, so positioning it near vents or under a small overhang is better than stashing it inside a sealed box.

Performance and Power Stability

When you plug it in, you’ll expect stable 30V output even if your battery voltage sags under load. The unit is designed to provide regulated 30V at up to 3.5A so your Starlink Mini can boot and maintain connection without brownouts. In real-world use, voltage regulation is steady, and the intelligent voltage adjustment helps compensate for input fluctuations.

Handling voltage sag

If you start from a 12V lead-acid battery, voltage sag under load is normal. This converter accepts inputs as low as 9V, which means it can tolerate a fair amount of sag and keep output stable so long as the battery isn’t critically low. That gives you more runtime before needing to recharge the battery.

Startup current and inrush

Starlink Mini devices can present a higher startup current demand. The converter’s 3.5A capacity covers typical startup surges for a single Mini unit, but if you’re using multiple accessories or running from a weak battery, expect reduced margins. You should avoid using this converter for more than the device’s rated draw.

Long Cable Runs and Voltage Drop

You’ll sometimes need to run the Starlink Mini away from the battery bank — for example, to put the dish on a roof or distant tripod. The converter supports long extension runs with guidance: use 16 AWG for runs up to 120 meters and 18 AWG for up to 75 meters from its 18 AWG output. This helps maintain acceptable voltage at the Starlink Mini end.

Why cable gauge matters

Thinner wires increase resistance and therefore voltage drop. If you extend the run, choose a heavier gauge to keep voltage loss down. The converter’s recommendation is practical: 16 AWG over long runs reduces drop significantly compared to 18 AWG.

Practical cable routing tips

You’ll want to avoid sharp bends, run cables away from heat sources, and use proper strain relief where cables pass through walls. Anchoring the cable at regular intervals reduces wear and helps maintain reliable performance.

Safety Features and Protections

You’ll appreciate integrated protections: overcurrent protection, short-circuit protection, and overheating prevention. The converter will also help prevent battery over-discharge by adjusting its behavior as the input voltage declines. These features reduce the chance of damaging either the Starlink Mini or your battery bank.

Overcurrent and short-circuit protection

If a fault occurs, the unit will shut down or limit output to protect components. That means a short on the output or a surge on startup shouldn’t fry the converter or your connected device.

Overheat protection and cooling

The unit relies on natural heat dissipation in part, and it will manage its output if internal temperatures rise. That prevents sustained high-heat conditions that would otherwise degrade electronics. Still, you should avoid sealing it in an airtight box where heat can’t escape.

Battery over-discharge prevention

Because the converter monitors input behavior, it helps prevent deep discharges that can harm battery longevity. If the battery voltage falls too low, the converter will reduce output or shut off, protecting your battery at the cost of immediate operation.

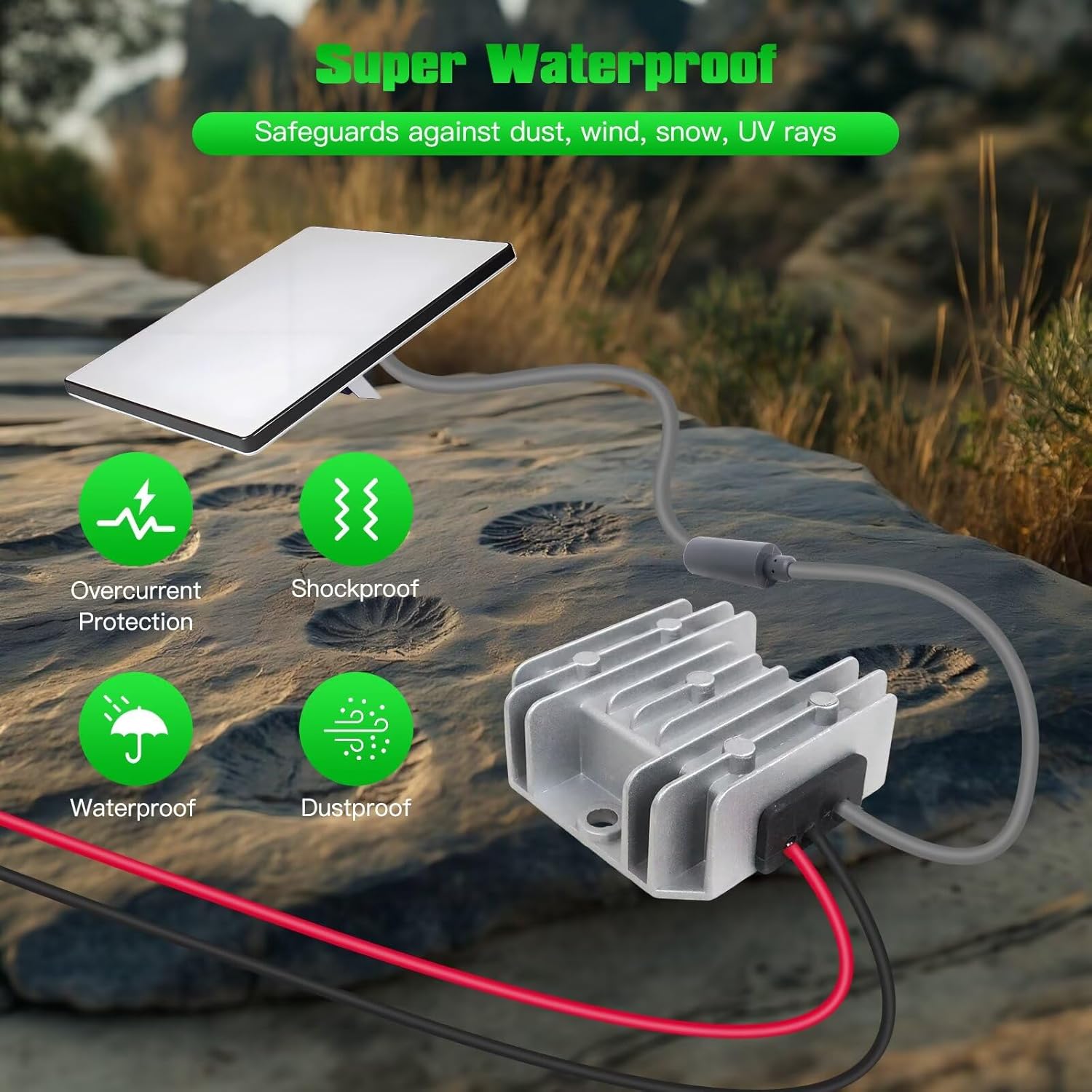

Waterproofing and Outdoor Readiness

The product advertises a waterproof design suitable for marine and outdoor use. You’ll still want to apply basic common-sense precautions: keep connectors clean, avoid submerging the converter, and protect it from prolonged direct exposure to spray or extreme saltwater conditions. For most RV, marine, and outdoor use, the weather resistance is more than adequate.

Connector care

The O-ring terminal connections are robust, but exposed terminals can corrode over time in salty or humid environments. Consider using dielectric grease on connections and periodic inspection to maintain reliability.

Real-world Runtime and Battery Considerations

You’ll get different runtime depending on the capacity of your battery bank and the current draw of your Starlink Mini under load. Estimating run time requires you to know your battery amp-hour rating and the approximate current draw of the Starlink Mini while active.

Estimating runtime example

If your Starlink Mini draws 3A at 30V (about 90W), and you have a 100Ah 12V battery (about 1200Wh usable at 12V after inverter inefficiencies aren’t relevant here because this is DC), you can calculate run time roughly as:

• Usable Wh from 100Ah 12V battery: ~1200Wh (assuming near full usable capacity, but realistic usable may be less to avoid deep discharge)
• Starlink draw: 90W
• Theoretical runtime: 1200Wh / 90W ≈ 13.3 hours
  Real-world factors like converter inefficiency, battery health, and depth-of-discharge limits will reduce that number. Always allow safety margin.

Monitoring battery health

You’ll want to monitor battery voltage and state-of-charge while running high-draw devices. Even with the converter’s protections, repeatedly draining a battery deeply will shorten its lifespan.

Installation Challenges and Common Questions

You might wonder about polarity, connector compatibility, or the need for fuses. Polarity is obvious: the positive and negative O-ring terminals must connect to the matching battery posts. Always install an appropriately rated inline fuse on the positive lead near the battery to protect wiring in case of damage or accidental shorts.

Fuses and wiring protection

Add an inline fuse close to the battery rated for slightly above the converter’s max draw (for example, a 5A–10A fuse depending on cable sizing and specific installation). This prevents battery fires if the cable is cut or shorted.

Grounding and vehicle systems

When using a vehicle battery, ensure the negative terminal is securely grounded. In some vehicles, isolator systems or battery management electronics may complicate direct battery connection, so check vehicle documentation if your rig uses DC-DC chargers or battery isolators.

Pros and Cons

You’ll weigh the advantages and trade-offs to see if this unit fits your needs.

Pros

• Allows Starlink Mini use from common 12V/24V sources.
• Wide input range (9–28V) tolerates sag and variability.
• Direct battery connection with O-ring terminals for simple, secure hookups.
• Long-run support with clear wire gauge recommendations.
• Integrated protections for overcurrent, short-circuit, and overheating.
• Weather-resistant design suits outdoor and marine use.

Cons

• Output limited to 3.5A, which is suitable for a single Starlink Mini but not for additional heavy loads.
• While weather-resistant, you shouldn’t submerge it or rely on it for continuous immersion in extreme marine spray without extra protection.
• For very long runs or higher-draw setups, you’ll need thicker gauge cable and careful planning.
• No built-in fuse on the positive lead; you must add one near the battery for safety.

Troubleshooting Tips

If your Starlink Mini won’t power on, start with the basics: check battery voltage, confirm tight O-ring terminals, and verify the DC plug orientation. If the converter seems warm or shuts down, reduce load and confirm the cable run isn’t introducing excessive voltage drop.

Common issues and fixes

• Starlink not powering on: Check that output plug is fully seated, the battery is charged above the minimum input, and fuses are intact.
• Converter shuts down intermittently: Ensure ventilation, examine for overheating, and check for shorts on the output.
• Excessive voltage drop at long distances: Upgrade to thicker gauge cable and shorten the run where possible.

Maintenance and Care

You’ll want to inspect the unit periodically, especially if used in marine or dusty environments. Clean terminals, check for corrosion, and confirm screws and cable clamps remain tight. Replace any frayed wiring and avoid exposing the converter to excessive heat sources.

Seasonal storage tips

If you store the converter for long periods, disconnect it from the battery and keep it in a dry place. Periodically check O-ring terminals for corrosion and protect metal parts with light grease if you’re in a coastal or humid area.

Value and Pricing Considerations

You’ll pay for convenience, safety, and compatibility. This device removes the need for complex wiring modifications or expensive DC-DC installers by offering a plug-and-play route to power your Starlink Mini from typical DC sources. Compare cost against the convenience of on-the-road internet; for many travelers and marine users, the price is reasonable given the time and complication it saves.

Who should buy this

You should consider this product if you:

• Want to use Starlink Mini off-grid from vehicle, RV, boat, or portable battery sources.
• Need a simple battery-to-Starlink connection without custom wiring.
• Plan to run the dish at a distance from the battery and require long cable support.
• Prefer built-in safety protections and weather-resistant construction for outdoor setups.

Who might look elsewhere

You may want a different solution if you:

• Need to power multiple heavy-draw accessories in addition to the Starlink Mini.
• Require a professional DC-DC charger with integrated battery management for sensitive lithium systems.
• Expect continuous immersion or heavy salt-spray exposure and need fully marine-rated components.

Alternatives and Complementary Accessories

If you need more functionality, consider a dedicated DC-DC converter with higher current rating or one that includes built-in fusing and monitoring. Complement the adapter with a battery monitor, inline fuse, heavier gauge extension cables, and waterproof cable glands for through-panel installations.

Suggested accessories

• Inline fuse holder and appropriately rated fuse near the battery.
• 16 AWG or 14 AWG marine-grade extension wire if you need long runs.
• Dielectric grease for corrosion prevention on terminals.
• Battery monitor (Bluetooth or instrumentation) to track state of charge.

Final Verdict

You’ll find the Xspeedonline 12V to 30V Power Supply for Star-Link Mini, Waterproof DC Converter Adapter Cable, 9-28V Input 3.5A Output for RV/Car/Marine, Step-Up Voltage Booster Accessory a practical, user-friendly option to power your Starlink Mini from common DC sources. The combination of broad input range, secure battery connection, long-run support, and integrated protections makes it a strong choice for travelers, boaters, and off-grid users who want reliable internet without complicated electrical work.

Quick Recommendations

• Always add an inline fuse close to the battery.
• Use heavier gauge cable for longer runs to minimize voltage drop.
• Mount the converter where it can vent and be easily inspected.
• Monitor battery state-of-charge to avoid repeated deep discharges.

Frequently Asked Questions (FAQs)

You’ll likely have specific questions; here are answers to common ones.

Can you use this with a 24V system?

Yes. The 9–28V input range includes normal 24V systems, so you can power your Starlink Mini from 24V battery banks without issue.

Is this safe for lithium batteries?

It’s compatible with lithium battery systems in terms of voltage range, but you must ensure your battery management system and charge controllers remain in place. Add fusing and follow battery manufacturer recommendations.

What happens if the battery voltage drops below 9V?

The converter may shut down or fail to maintain stable output. The unit is designed to tolerate down to 9V, so below that threshold it can’t guarantee 30V output and will likely turn off to protect the battery.

Do you need to modify the Starlink Mini cable?

No. The adapter uses the correct DC plug on the output side to mate with your Starlink Mini, so no modification is required.

Is the housing fully waterproof?

The housing is water-resistant and suitable for outdoor conditions, but you shouldn’t submerge it or leave it exposed to continuous heavy spray without additional protection.

Final Tips for Best Experience

You’ll get the best performance if you plan cable runs, use appropriate gauges, fuse near the battery, and keep the converter ventilated. Periodic maintenance and monitoring will ensure long service life and reliable internet while you’re off-grid.

If you want, tell me how you plan to use your Starlink Mini (RV, boat, car, or solar generator) and I’ll help you size the right cables, fuse, and battery expectations for your setup.
