Wallbox Pulsar Plus Level 2 40A EV Charger review

?Are you looking for a reliable, fast, and smart Level 2 home EV charger that fits both indoor and outdoor use?

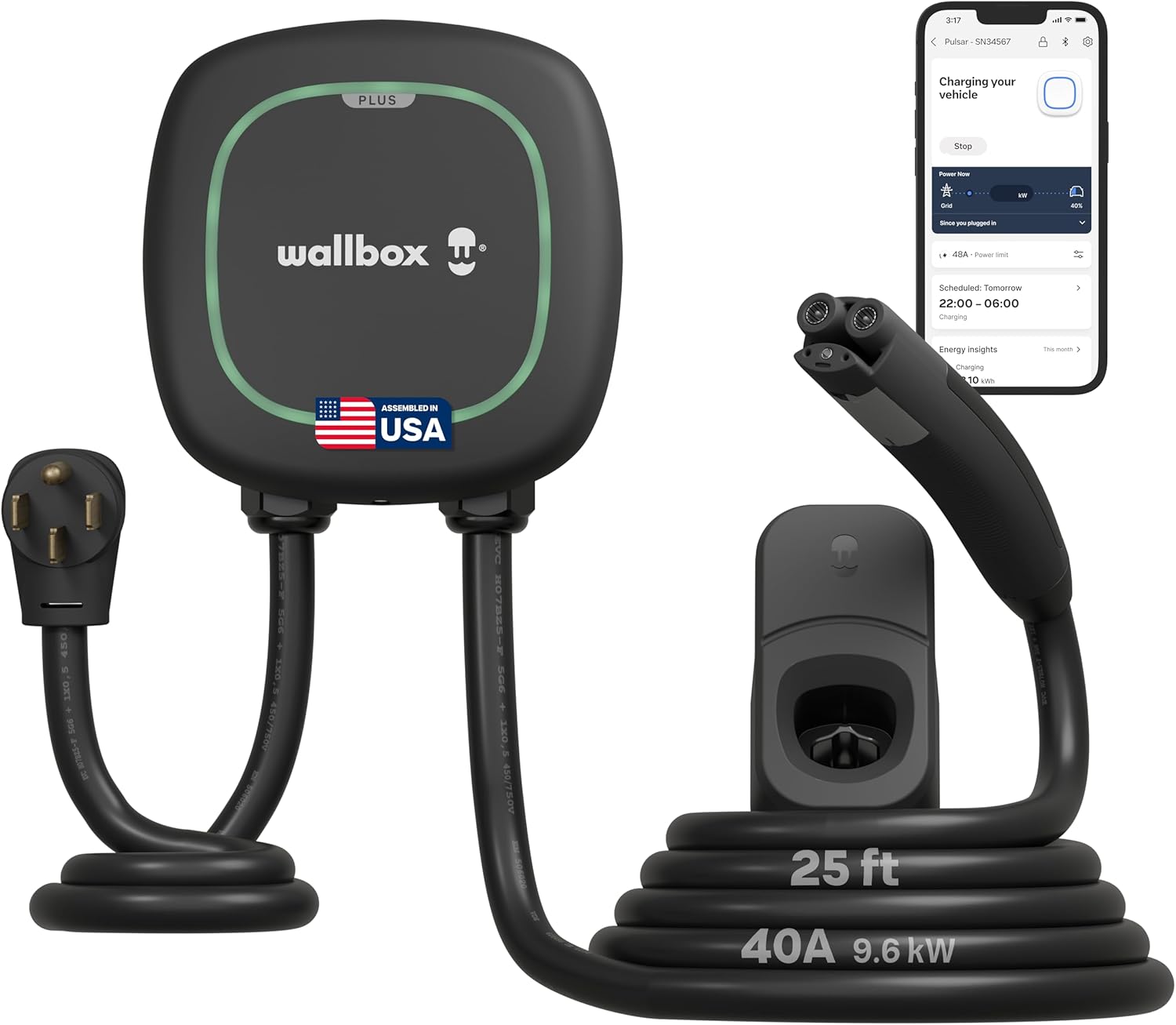

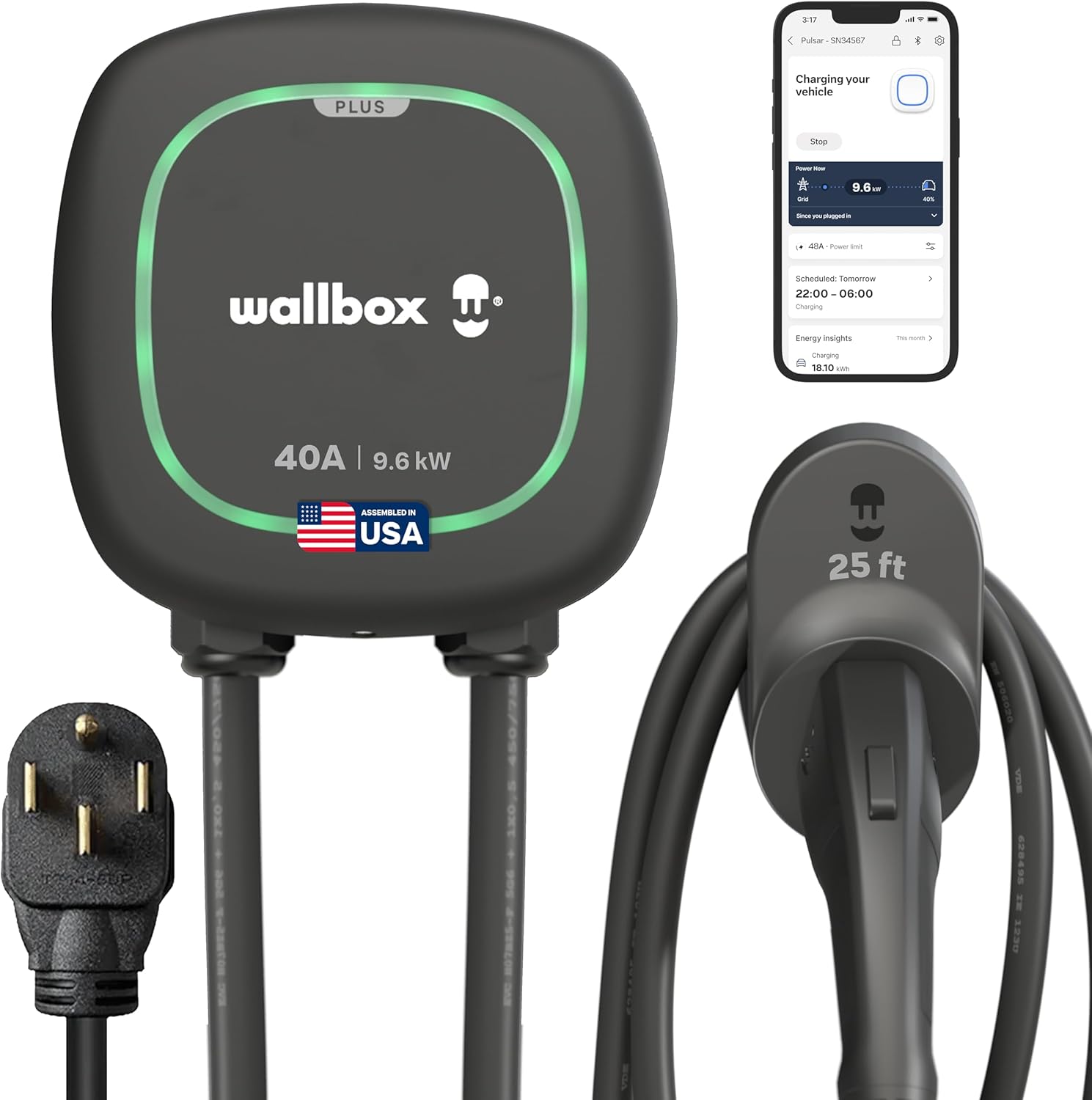

Quick summary of the Wallbox Pulsar Plus Level 2 EV Charger 40 Amp – 9.6kW 240V Wall Home EV Charger – J1772 25ft Cable and NEMA 14-50 – Outdoor and Indoor EVSE – Energy Star and UL Certified – Assembled in USA

You get a compact, powerful Level 2 charger that’s designed for home installation and everyday use. It delivers up to 40 amps (9.6 kW at 240V), offers smart connectivity with Wi-Fi and Bluetooth, and is UL and Energy Star certified. You’ll appreciate the 25-foot cable and the secure SAE J1772 connector that fits nearly every non-Tesla EV without an adapter.

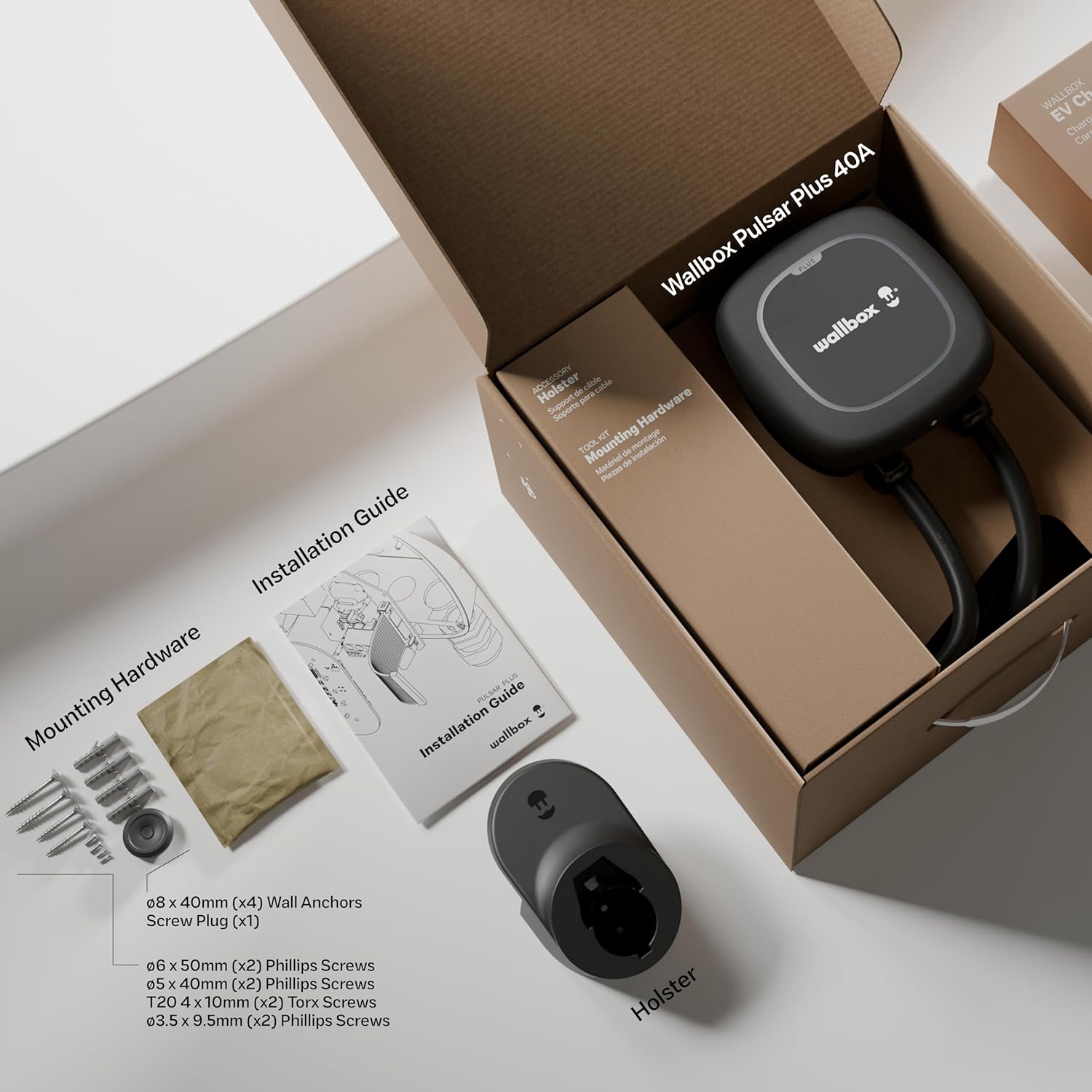

What you’ll find in the box

You’ll receive the Wallbox Pulsar Plus EV Charger in the NEMA 14-50 version with everything required for standard plug-in setup. If your home already has a NEMA 14-50 outlet, installation can be quick — usually 5–10 minutes to mount and plug in. The package includes the charger unit with a 25 ft J1772 cable; mounting hardware and the outlet are usually separate, so double-check what your retailer provides.

Technical specifications

Below is a concise breakdown of the most important technical details to help you decide if this charger matches your needs.

Feature	Specification
Model	Wallbox Pulsar Plus Level 2 EV Charger (40 Amp)
Charging Power	Up to 9.6 kW
Current	40 A
Voltage	240 V
Connector	SAE J1772 (25 ft cable)
Cable Length	25 feet
Outlet Type (version)	NEMA 14-50
Installation Time (if outlet exists)	5–10 minutes
Connectivity	Wi-Fi and Bluetooth
Smart App	Wallbox Smart App for scheduling, monitoring, and control
Certifications	UL Listed, Energy Star certified
Weather Resistance	Rated for indoor and outdoor use
Assembled	United States
Special Features	Static Load Management, scheduling, remote monitoring

Charging performance: how fast can it charge your EV?

You’ll enjoy significant charging speed improvements compared to portable Level 1 chargers. At 40 amps, the Pulsar Plus provides around 25–35 miles of range per hour, depending on the vehicle and its efficiency. That means overnight charging will be more than sufficient for most daily driving needs, and a few hours of charging can restore a substantial amount of range.

Several factors affect actual charging speed:

• Your vehicle’s onboard charger maximum input — if your EV accepts less than 40A, your charging will be limited by the car.
• Battery state of charge — charging tends to slow as the battery approaches full.
• Ambient temperature and battery temperature management — extreme cold or heat can reduce effective charging speeds.
• Circuit capacity and any power-sharing configurations if multiple chargers are installed.

If you want extra charging speed, Wallbox sells a 48A model that will provide higher power where your EV and electrical setup allow it.

Installation and setup: what you need to know

If you already have a NEMA 14-50 outlet in your garage or driveway, installing the NEMA 14-50 version is straightforward and fast — 5–10 minutes is typical for mounting and plugging in. If you do not have the outlet, you’ll need an electrician to install a dedicated 40A or 50A circuit, depending on local code and whether you opt for the 48A variant.

Important installation considerations for you:

• Circuit breaker and wiring gauge: Use the correct gauge wire and breaker size as specified by local code and your electrician. For continuous 40A charging, you typically need a 50A breaker with 6 AWG copper for permanent hardwired installations. The NEMA 14-50 plug version uses the matching outlet rating.
• Location: The Pulsar Plus is compact; mount it at a height and position that gives your cable easy access to the vehicle port without tripping hazards.
• Permits: Some jurisdictions require a permit for EV charger installation — check local requirements before starting.
• Professional help: If you’re not comfortable with electrical work, hire a licensed electrician. Even if the unit is easy to plug into an existing outlet, verifying shared circuits and load capacity is often best left to a pro.

Static Load Management

The Pulsar Plus supports Static Load Management, which lets you share power between multiple Wallbox chargers or other appliances. If you plan to install more than one charger or share a circuit with high-demand appliances, this feature helps you avoid overloading the service by prioritizing and allocating current as needed.

Smart features and mobile app: how you control your charging

You’ll be able to control, schedule, and monitor charging sessions using Wallbox’s Smart App through Wi-Fi or Bluetooth. The app lets you:

• Start and stop charging remotely
• Schedule charging during off-peak hours to save money
• Monitor historical charging sessions and view energy consumption
• Receive firmware updates and notifications

Smart connectivity helps you optimize charging for the lowest cost and best use of renewable or on-site energy sources if you have a solar system. Bluetooth is handy for local setup and quick connections, while Wi-Fi enables remote control when you’re away from home.

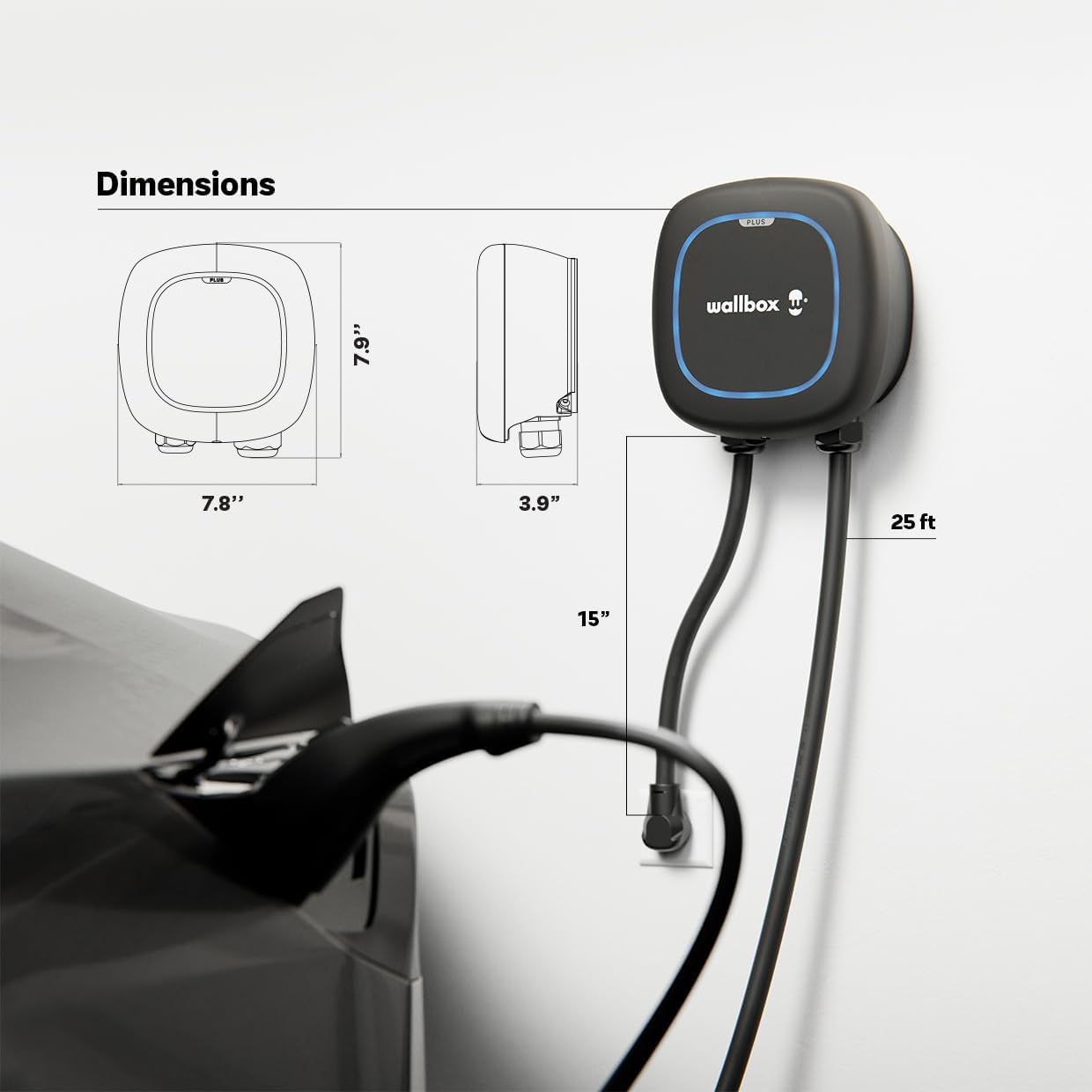

Design, size, and build quality: how it looks and holds up

The Pulsar Plus has a compact and modern design intended to blend into residential settings. The unit’s small footprint makes it easy to mount in garages, carports, or on exterior walls without being obtrusive. The 25-foot cable gives you plenty of reach for most parking situations.

Build quality notes for you:

• The casing and components are weather-resistant for safe outdoor use.
• The J1772 connector is secure and ergonomic for daily plugging and unplugging.
• Cable management options: you’ll want to use a cable hook or optional holster to keep the cord tidy and off the ground when not in use.

Safety features and certifications

Safety is a key reason to choose a certified charger. The Pulsar Plus is UL listed and Energy Star certified, which indicates it meets industry safety and efficiency standards. It includes built-in safety measures you can rely on:

• Ground fault and overcurrent protection
• Temperature and fault monitoring
• Weather-resistant components for outdoor installations
• Compliance with electrical safety standards for EVSE

Because it’s assembled in the USA, you may also find it easier to obtain support and replacement parts if needed.

Compatibility and Tesla charging

This charger uses the SAE J1772 connector, which is the standard for most EVs in North America. If you drive a Tesla, you’ll need a Tesla-to-J1772 adapter (sold separately) to connect. For most other EVs, you can plug in directly without any additional adapter.

Compatibility aspects to keep in mind:

• Your EV’s onboard charging capacity — if your car only accepts 32A, the charger will only deliver up to 32A regardless of the Pulsar Plus’s 40A capability.
• For future-proofing: if you anticipate getting an EV that supports higher amperage, consider whether you’d rather buy a 48A model now to avoid upgrades later.

Who this charger is best for

This model is ideal if you:

• Want a reliable, compact Level 2 charger for home use
• Have or can install a NEMA 14-50 outlet easily
• Want smart features for scheduling and monitoring to reduce charging costs
• Need an outdoor-capable unit that stands up to weather conditions
• Prefer a unit assembled in the USA with Energy Star and UL certification

If you’re an occasional driver with minimal charging needs, this may be more charger than you require. If you have multiple EVs or a very high daily driving demand, you might prefer the 48A option or a charger with ve higher amperage depending on your electrical service.

Pros

You’ll benefit from several advantages if you choose the Pulsar Plus:

• Fast charging relative to Level 1 chargers (about 25–35 miles/hour)
• Compact, attractive design that fits residential spaces
• Smart app with scheduling and remote control via Wi-Fi/Bluetooth
• Weather-resistant for both indoor and outdoor use
• UL and Energy Star certifications for safety and efficiency
• 25-foot cable for flexible parking options
• Assembled in the USA for accessible support and quality control

Cons

A few limitations you should consider:

• You’ll need a Tesla adapter to use with Tesla vehicles
• If you don’t have a NEMA 14-50 outlet, electrical installation costs can add up
• Some users may want higher amperage (48A) for even faster charging
• Advanced power management and integration with home energy systems may require additional hardware or subscriptions depending on your setup

Comparison with other common home EV chargers

To help you contextualize the Pulsar Plus, here are some high-level comparison points you’ll find useful when evaluating alternatives:

• Portable basic Level 1 chargers: Typically very slow (a few miles of range per hour). The Pulsar Plus is roughly 8x faster than those, making it far better for daily recharging.
• Higher-amperage Level 2 chargers (e.g., 48A models): These will charge marginally faster where your EV and electrical service allow. If you want maximum speed and your home can support it, the 48A option is worth considering.
• Smart chargers from other brands: Features like scheduling, monitoring, and firmware updates are common across smart chargers. The deciding factors for you will be build quality, app reliability, cable length, certifications, and cost.

Cost, incentives, and savings

You’ll spend more on a Level 2 charger like the Pulsar Plus than on a simple portable charger, but you’ll recoup value in convenience and time savings. Additionally, you may qualify for local, state, or federal incentives and rebates for installing EV charging infrastructure. Some utility companies offer rates or rebates for off-peak charging as well.

What to check for savings:

• Federal tax credits or EVSE incentives (availability and eligibility vary over time)
• State and local rebates or utility programs
• Time-of-use electricity rates: scheduling charging during off-peak hours can reduce your monthly costs

Always check your local resources or ask your electrician about potential incentives and incentives’ current status.

Practical tips for installation and daily use

• Confirm outlet and breaker rating before buying the NEMA 14-50 version. If you don’t have the outlet, get quotes from electricians to compare hardwire vs outlet installation costs.
• Mount the charger at a comfortable height to make plugging/unplugging easy and reduce cable strain.
• Use the app to schedule charging during off-peak hours to lower your electricity costs.
• Keep the cable off the ground and use a holster or hook to extend cable life and reduce tripping hazards.
• If you have multiple chargers or heavy appliances, use Static Load Management to prevent circuit overloads.
• If your Wi-Fi is weak in the garage, consider a Wi-Fi extender or use Bluetooth for initial setup and local control.

Maintenance and longevity

You’ll find the Pulsar Plus requires minimal maintenance. Routine checks and basic upkeep will keep it functioning reliably:

• Inspect the cable and connector occasionally for damage or wear.
• Keep the connector clean and dry; wipe with a damp cloth as needed.
• Ensure firmware updates through the app to maintain the latest features and safety improvements.
• If installing outdoors, check seals and the unit for any signs of damage after severe weather events.

Typical lifespan for a well-maintained Level 2 charger is many years; the sturdy design and certifications make it a dependable long-term accessory.

Troubleshooting common issues

If you run into problems, here are simple steps you can try:

• Charger not connecting to Wi-Fi: Move closer to the router or use a Wi-Fi extender; restart the charger and router; try Bluetooth for initial setup.
• Charging session stops unexpectedly: Check breaker and outlet for trips; inspect connector for secure fit; review app alerts for fault codes.
• Lower than expected charging speed: Confirm your EV’s onboard charger accepts 40A; check current state of charge and battery temperature; verify if Static Load Management is limiting current due to other loads.
• App issues: Update the app, ensure the mobile device’s OS is up-to-date, and confirm network permissions are enabled.

If issues persist, contact Wallbox support or your retailer for assistance — having the serial number and firmware version helps speed diagnosis.

Frequently asked questions (FAQ)

• Do I need a special adapter for Tesla vehicles? Yes. Tesla models require a Tesla-to-J1772 adapter to connect to the Pulsar Plus.

• Can I install the Pulsar Plus outdoors? Yes. The unit is designed for both indoor and outdoor use and has weather-resistant components.

• How much range will I get per hour of charging? Typically about 25–35 miles per hour at 40A, depending on your vehicle’s efficiency and onboard charging capability.

• Is a professional electrician required? If you have an existing compatible NEMA 14-50 outlet, you can plug in and mount the unit yourself. If you need a new outlet or circuit, hiring a licensed electrician is recommended.

• Will the Pulsar Plus work with multiple EVs? It will charge one vehicle at a time. If you have multiple chargers installed, you can use Static Load Management to share power.

• Can it be hardwired instead of using the NEMA 14-50 plug? Many Wallbox models support hardwiring depending on configuration. Check the product variant you are buying and consult an electrician for hardwiring.

Safety reminders and best practices

• Always use the correct breaker and wiring gauge for continuous charging loads.
• Avoid using extension cords or adapters that aren’t rated for EV charging.
• Store the cable safely to prevent tripping or damage.
• Do not attempt complex electrical work unless you are certified; incorrect wiring can cause hazards or damage.

Final verdict

If you want a compact, reliable Level 2 home charging solution that balances speed, smart features, and weather resistance, the Wallbox Pulsar Plus Level 2 EV Charger 40 Amp – 9.6kW 240V Wall Home EV Charger – J1772 25ft Cable and NEMA 14-50 – Outdoor and Indoor EVSE – Energy Star and UL Certified – Assembled in USA is a strong choice. You’ll enjoy fast charging relative to basic chargers, the convenience of scheduling and monitoring through the app, and the reassurance of UL and Energy Star certifications. For most home EV drivers, it hits the sweet spot between performance, price, and usability — and if you need more speed, the 48A model gives you an upgrade path.

If you’d like, I can help you compare this model side-by-side with the 48A Pulsar Plus or other popular home chargers, estimate installation costs based on your local conditions, or walk you through steps to prepare your garage or outlet for installation.
