Upgraded 200W Portable Solar Panel review

Looking for a reliable portable solar panel that can charge your power station, phone, laptop, and more while you’re on the move?

Product overview — what this unit is and who it’s for

You’re looking at the Upgraded 200W Portable Solar Panel for Power Station Generator, 18V Foldable Waterproof IP65 Solar Cell Charger with Adjustable Kickstand and MC-4 Cable for Laptop Outdoor Camping Boat Lawn RV Trip. The name is long because the feature list is long: it’s a foldable monocrystalline array designed for people who want serious mobile solar charging without a heavy, fixed installation. This panel targets campers, RV owners, boaters, and anyone who wants to keep a power station topped up during off-grid trips or emergencies.

Key specifications at a glance

You’ll want a quick snapshot before you read the full review. The table below summarizes the most important specs and included accessories so you can quickly confirm compatibility with your gear.

Item	Specification / Included
Rated power	200W (peak)
Cell type	Monocrystalline solar cells
Conversion efficiency	Up to 24%
Nominal voltage	18V (single panel)
Waterproof rating	IP65 (surface-level water and dust protection)
Foldable design	Bifold with built-in zippered accessory pouch

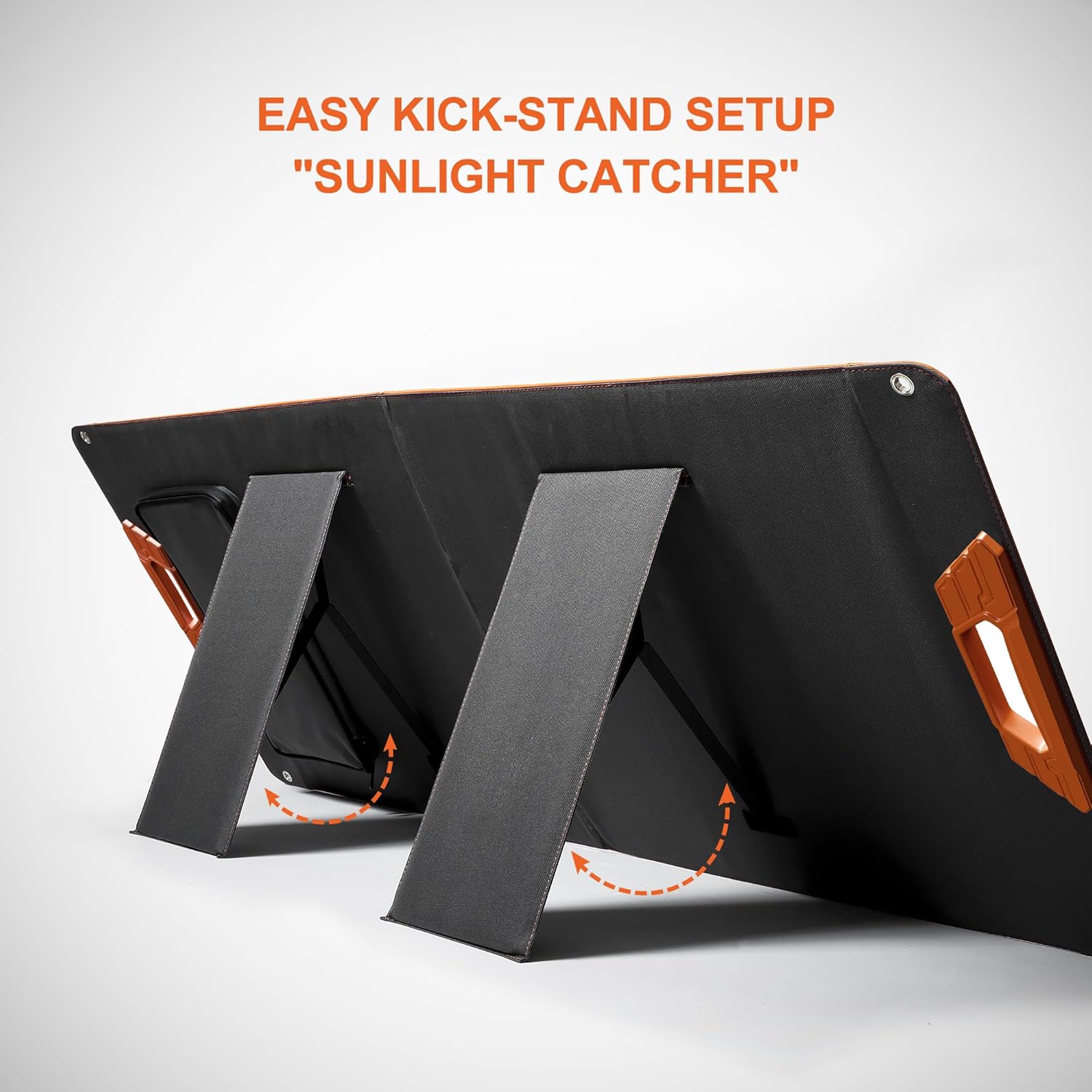

Kickstand	2 adjustable kickstands for angling on flat surfaces
Outputs	MC4 cable to power controller, Controller with TYPE-C, USB-A, USB-C
Protection features	Overvoltage/overcurrent/short circuit/overtemperature and reverse charging protection
Connections	MC4, XT60, Anderson, DC5521, DC7909, DC8020 adapters included
Expandability	Supports series and parallel connections (note series voltage increase to 36V)
Included accessories	MC4 to power controller, MC4 to Anderson/DC/XT60 cable, 4x DC adapter tips, user manual
Warranty	12-month warranty, 30-day money-back guarantee, 7×24 support
Typical charge example	Can fully charge a 500Wh power station in ~4 hours under adequate sun (manufacturer claim)

Design and build quality

You’ll notice the panel is designed to be portable and tough. The outer fabric is waterproof Oxford cloth, with ETFE lamination protecting the solar cells to lengthen lifespan and enhance cell performance. The combination of reinforced grommets, a magnetic handle and a zippered pouch makes it feel more like a rugged briefcase than a fragile electronic device.

The IP65 rating means the panel is dust tight and can handle low-pressure water jets; you should feel confident leaving it out in light rain or splashes. That said, you shouldn’t submerge it or leave it in prolonged heavy downpours without shelter. The ETFE layer helps reduce abrasion and improves UV resistance, so the cells keep working longer with less degradation.

Portability and setup

You’ll appreciate the bifold form factor when you’re packing. It folds like a briefcase and the magnetic handle keeps it compact for transport. When you arrive at your campsite or dock, you can unfold it, prop it up using the two built-in kickstands, and angle it toward the sun in seconds.

Mounting options are flexible: reinforced grommets let you hang or tie the panel to an RV, tent, or boat rail. The zippered accessory pouch stores cables and adapters, so you won’t be hunting for connectors when the light is good. This setup is ideal if you move frequently or want a multi-surface mounting option.

Performance and charging behavior

You’ll get high conversion efficiency—up to 24%—thanks to the monocrystalline cells, which helps maximize real-world power output compared with many thin-film or polycrystalline panels. In good sun, the panel can reach its 200W peak output. The manufacturer claims it will fully charge a 500Wh power station within about four hours under adequate sunlight, which is a realistic target for bright, unobstructed days.

The panel has an auto-optimization feature: if clouds or intermittent shade interrupt charging, the control system will automatically reconnect when sunlight returns. This reduces the hassle of manually re-establishing a connection when conditions change.

Do note that performance depends heavily on factors you control: panel angle, solar irradiance, temperature, and shading. You’ll get less output on cloudy days, when partially shaded, or if the panel is not angled properly.

What to expect in different sunlight conditions

You should expect the following rough behavior in real conditions. These are general guidelines so you can plan expectations, not guarantees.

Full sun (clear sky, correct angle): near 200W peak output for a stretch around solar noon. This is when the panel performs closest to rated specs.
Partly cloudy: output fluctuates; the smart controller reduces interruptions by auto-reconnecting, but average output will be lower.
Overcast: output drops significantly; you’ll still generate some power, but charge times lengthen substantially.
Low-angle sun (early morning/late afternoon): lower voltage/current; repositioning helps but expect reduced power.

Outputs, connectors, and compatibility

You’ll find the panel well-equipped for device variety. It uses an MC4 main output that’s compatible with most solar systems and can be connected to a free cable bundle (XT60, Anderson, DC5521, DC7909, DC8020) to reach compatibility with a wide range of power stations and equipment.

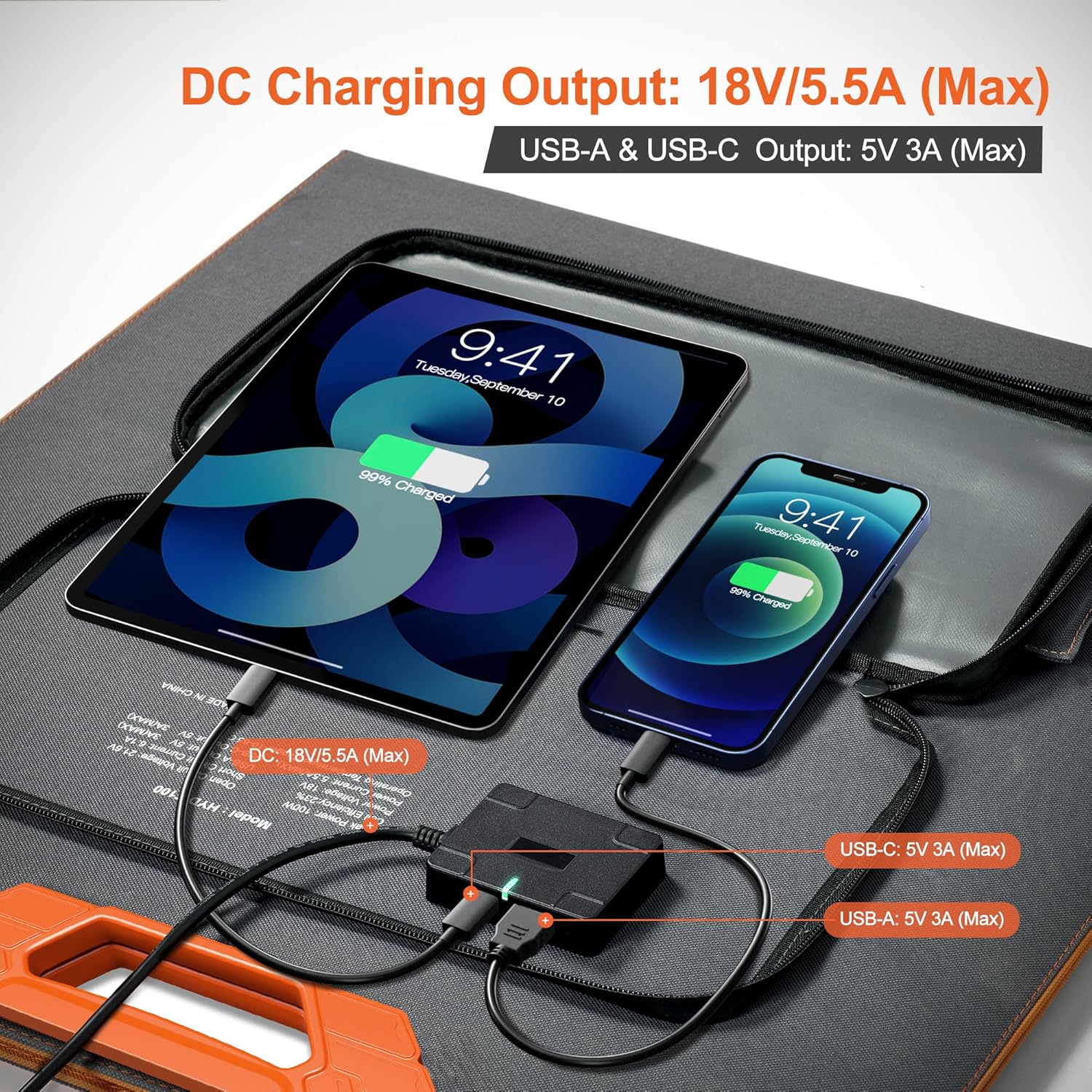

The included controller box also gives you TYPE-C, USB-A and USB-C fast charging outputs for direct 5V charging of phones, tablets and smaller devices. The combination of MC4 for power station input and USB outputs for direct charging makes the panel versatile for mixed-device usage.

Important note about power station compatibility

You’ll need to check your power station’s maximum solar input rating. Many power stations have an input power limit that’s lower than 200W. If your station’s maximum input is, for example, 100W or 120W, it will only draw up to that limit from this panel even if the panel can produce more. This isn’t an issue with the panel’s output but rather with the power station’s accepted input. Always verify the model-specific input limits before relying on full 200W transfer.

Series and parallel connection behavior

You’ll be able to expand your setup by combining two panels in series or parallel. Parallel connection is the typical choice to increase current and get more power while keeping voltage compatible with the MC4 adapter box. Series connection raises voltage (two panels in series will make ~36V), which can be useful for some MPPT controllers and certain high-voltage input stations but is not usable with the included MC4 adapter power box. Be mindful of what your charge controller or power station accepts before you wire multiple panels.

Protection and smart charging features

You’ll benefit from a full set of protection features. The controller employs smart IC chips to optimize charging for USB-A and USB-C outputs, adjusting voltage and current for optimal fast-charge performance. The panel’s protection suite includes:

Overvoltage protection
Overcurrent protection
Short circuit protection
Overtemperature protection
Reverse charging protection on the MC4 output

These protections help safeguard your devices while charging and reduce the risk of damage from wiring mistakes or extreme conditions.

Real-world use scenarios and recommendations

You’ll find this panel useful in many outdoor and emergency contexts. Below are practical setups and recommendations so you can match the product to your needs.

Weekend camping with a 500Wh power station: set the panel on its kickstands near your site angled at the sun by mid-morning. Expect to significantly top-up or fully charge the station during a sunny day.
RV trips: hang the panel on an awning rail with the reinforced grommets or lay it on a table while parked. Combine with a second panel in parallel for faster charging.
Boating or fishing trips: the IP65 rating and ETFE-protected cells handle water spray and sun exposure, but avoid heavy splash zones and secure the panel to prevent wind damage.
Emergency backup: keep the panel in your car or garage folded; if the grid goes down you can use it to slowly recharge a power station and run essential devices.

Setup checklist and quick start

You’ll appreciate a step-by-step start guide to get the best results without frustration. Follow this checklist:

Unfold the panel and place it on a flat surface with the kickstands extended. Angle it toward the sun for maximum exposure.
Connect the MC4 cable to the panel’s MC4 output securely.
Attach the appropriate adapter cable to your power station input (check polarity and connector type).
If charging devices directly, use the controller box’s USB ports (Type-C / USB-A) and select the correct cable for your device.
Monitor the controller and your power station’s input readings to verify current and voltage flow.
Reposition periodically to follow the sun or to avoid shade.

This basic routine will maximize your output and minimize troubleshooting.

Installation, mounting, and angling tips

You’ll get better performance if you pay attention to angle and secure mounting.

Angle: Aim the panel perpendicular to the sun’s rays for maximum output. Adjust angle seasonally if your campsite stays put for days.
Mounting: Use the reinforced grommets to tie the panel to poles, rails, or an RV awning with bungee cords or straps. The magnetic handle is handy but not a secure long-term mount.
Wind: Secure the panel low and flat if you expect strong gusts. The kickstands are for light-duty positioning, not high-wind exposure.
Shade: Even small shaded areas on the cell surface can seriously reduce output; position to minimize partial shading.

Durability and weather resistance

You’ll find the build is designed for rugged outdoor use. The Oxford cloth exterior resists abrasion and the ETFE lamination protects the cells from scratches, humidity and UV. IP65 rating means it handles dust and low-pressure water jets, so light rain or spray won’t stop you from charging.

That said, you should avoid prolonged exposure to heavy rain or submersion. Store the unit dry and folded when not in use to prolong the life of the fabric and electronics.

What’s included and unboxing expectations

You’ll receive everything needed to connect to most modern power stations: a LUVKNIT 200W solar panel, an MC4 to power controller, MC4 to Anderson/DC/XT60 cable, four adapter tips (DC5521 to 8020/7909/5525/35315), and a user manual. The accessories are packed in the zippered pouch or a small box in the folder; keep them together to avoid losing the small adapter tips.

Pros and cons

You’ll want a straightforward list so you can weigh the trade-offs quickly.

Pros:

High conversion efficiency (up to 24%) for strong real-world output.
Portable, bifold design with magnetic handle and zippered pouch for storage.
Wide compatibility via MC4 and included adapter cables.
Robust protections and smart charging for USB outputs.
Waterproof Oxford cloth and ETFE lamination for durability and weather resistance.
Ability to connect multiple panels for expanded capacity.
12-month warranty and 30-day money-back guarantee.

Cons:

Peak output is dependent on sun and angle—cloudy or shaded conditions reduce performance significantly.
Some power stations have input limits lower than 200W; you must verify compatibility before relying on full output.
Series connection raises voltage to 36V and can’t use the included MC4 adapter power box when wired this way.
Kickstands and briefcase design are convenient but not as stable as rigid frame panels in high winds.

Troubleshooting common issues

You’ll find most issues are simple to resolve. Here are common problems and fixes.

Panel not charging power station: Check MC4 connections, adapter polarity, and power station input specifications to make sure voltage and wattages are compatible.
Low output readings: Re-angle the panel to face the sun, remove shading, and clean debris from the surface. Check for cloud cover.
Intermittent charging: The auto-optimization should help, but ensure connectors are fully seated and there’s no loose wiring.
Device not charging from USB: Test another cable and device to isolate whether the issue is the controller or your cable.

Maintenance and care

You’ll lengthen the life of the panel with simple maintenance.

Clean the ETFE surface occasionally with a soft damp cloth; avoid abrasive cleaners.
Keep the panel folded and stored dry when not in use.
Inspect grommets and seams for wear, especially after heavy use or storms.
Avoid dragging the panel on rough surfaces to prevent abrasion to the fabric and lamination.

Comparison with alternatives

You’ll find several competing types of portable solar solutions; here’s how this panel stacks up in broad terms.

Foldable vs rigid panels: Foldable panels like this one win on portability and storage. Rigid panels typically give slightly higher efficiency per area and more stable mounting but are heavier and bulkier.
Monocrystalline vs polycrystalline: Monocrystalline cells (this panel) tend to have higher conversion efficiency, so you generate more power from the same area.
Higher watt portable arrays: Larger systems (300–400W) can charge faster but are heavier and often require more complex mounting and controllers. For a good balance of portability and power, 200W is a sensible middle ground.

Safety considerations

You’ll need to handle electrical connections responsibly.

Always match polarity and connector types when wiring to a power station. Incorrect connections can damage equipment.
Do not leave cables exposed to sharp edges or underfoot where they can be tripped on or cut.
Avoid connecting panels in a configuration that exceeds your charge controller or power station’s voltage/current ratings.

Frequently asked questions (FAQ)

You’ll want quick answers to common questions before you buy. Below are common FAQs and clear answers.

Q: Can two of these panels be connected to get 400W?
A: Yes, you can connect two panels in parallel to increase current and approach double the power output. Make sure your power station or controller accepts the combined current.

Q: What happens if my power station only accepts 100W input?
A: The station will only draw up to its maximum input (100W) even if the panel produces more. The panel isn’t defective; the station is limiting the intake.

Q: Is the panel safe to leave outside overnight?
A: The IP65 rating provides protection from dust and low-pressure water jets, but you should avoid leaving it exposed in heavy rain or storms. Folding and storing overnight is recommended for long-term durability.

Q: Can I charge a laptop directly from the USB-C port?
A: Many laptops that accept USB-C PD can charge from the controller’s Type-C port, but power and compatibility vary per laptop model. Check your laptop’s PD requirements and the controller’s output specs.

Q: Does it work with all power stations?
A: It’s compatible with most power stations using the included adapters, but you must confirm the station’s input connector and maximum solar input power.

Who should buy this (and who shouldn’t)

You’ll find this panel ideal if you want a balance of portability, durability, and strong charging capability for weekend trips, RV outings, and emergency preparedness. It’s a good fit if you already own or plan to buy a portable power station and want a flexible outdoor charging solution.

You might not want this panel if you need continuous, heavy-duty off-grid power where a fixed rooftop array or higher-watt system is more appropriate. Also, if you have a power station with a very low maximum solar input, a smaller panel might be a better match.

Final verdict

You’ll get a solid, well-designed portable solar solution with the Upgraded 200W Portable Solar Panel for Power Station Generator, 18V Foldable Waterproof IP65 Solar Cell Charger with Adjustable Kickstand and MC-4 Cable for Laptop Outdoor Camping Boat Lawn RV Trip. The panel balances portability, protection and high-efficiency cells to deliver reliable mobile power. The inclusion of multiple adapters and smart protections means it’s ready to plug into most setups with minimal fuss. If you value portability and want a capable panel that works in many real-world outdoor scenarios, this one is a very practical choice.

If you plan to use multiple panels or pair with a particular power station, confirm input limits and wiring configurations first. With proper planning and mounting, you’ll have a flexible off-grid power source that makes it easier to keep your devices and power station charged during trips or outages.
