Are you looking for a compact, high-efficiency solar solution for camping, RV trips, and power stations?
Product Overview: 100 Watt Portable Solar Panel with 20A PWM Controller,Camper Essentials,19V Foldable Solar Panel Kit for Power Station & 12V Batteries,23.5% High Efficiency IP68 Waterproof for Camping RV Trip
This product name tells you a lot at once: a 100 W foldable solar panel designed for portability and compatibility with power stations and 12V batteries. You’ll find it marketed toward campers, RV owners, and anyone who wants a lightweight, rugged solar option for charging devices off-grid. The emphasis on 23.5% efficiency and IP68 waterproofing suggests strong performance and weather resistance for outdoor use.
Important Accessory Reminder
Make sure you check the folded panel gap when you open the package; that’s where two essential accessories are packed.
You’ll find the small PWM controller box and an SAE-Alligator clip cable tucked inside the middle layer. Don’t discard the packaging without looking — those accessories are easy to miss and required for battery charging.

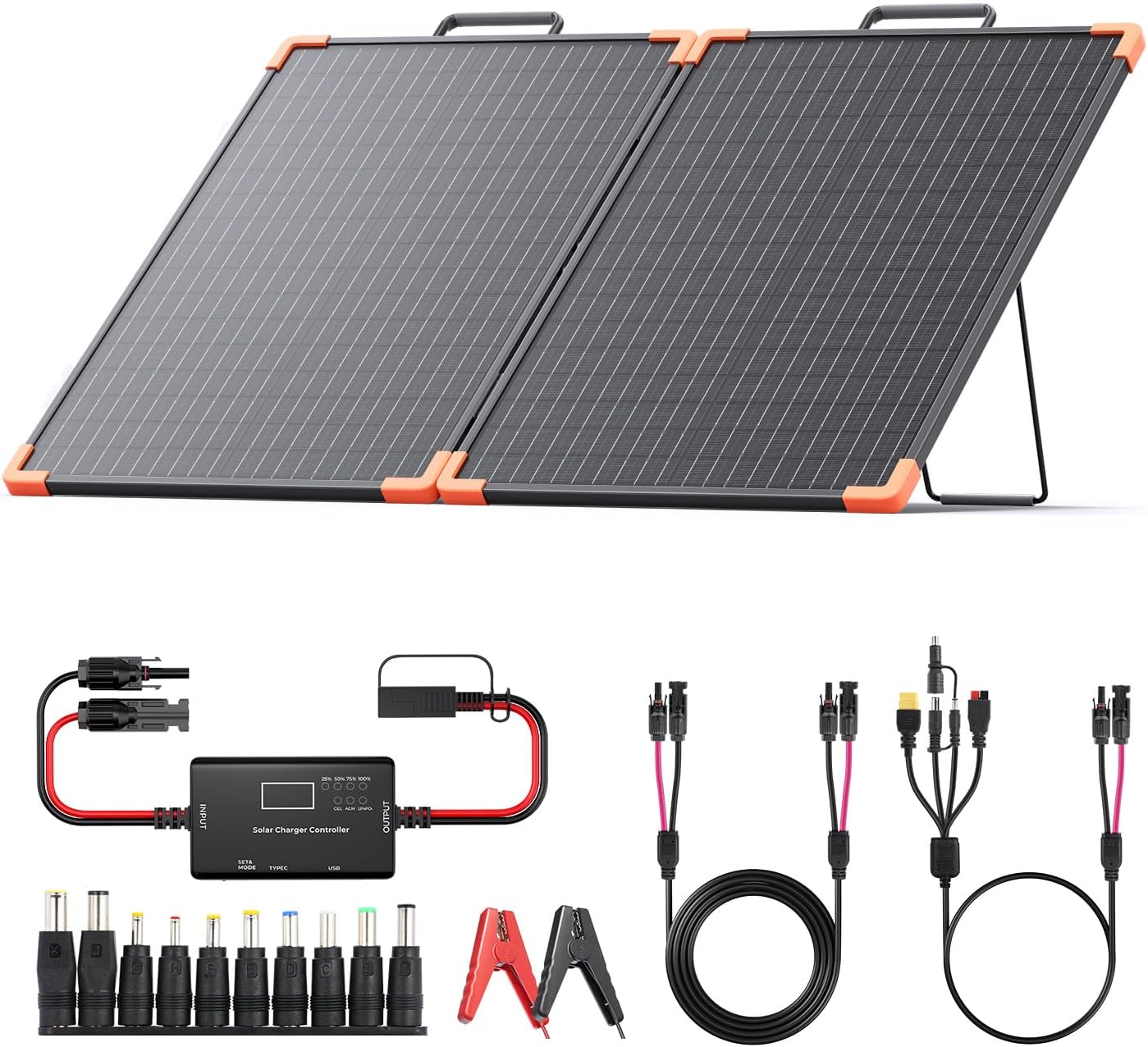

What’s in the Box
You’ll receive more than just the panel — the kit is intended to be plug-and-play for a variety of charging scenarios.
Here’s what the package includes so you can verify everything upon arrival.
- 100 watt portable foldable solar panel ×1
- 20A PWM controller (small box) ×1
- 5-in-1 solar cable (XT-60, Anderson, DC5521, DC7909, DC8020) ×1
- 10-in-1 DC adapter ×1
- SAE-Alligator clip cable ×1
- Stylish storage/carry bag ×1
- User manual ×1
- 5-year warranty and 24/7 customer service from ZOUPW
Key Specifications
This section summarizes the technical details you’ll care about when assessing whether the panel will meet your needs.
Refer to this table when you compare other panels or estimate charging times for devices.
| Specification | Detail |
|---|---|
| Rated Power | 100 W |
| Efficiency | Up to 23.5% |
| Nominal Voltage | 19 V (open-circuit higher) |
| Folded Dimensions | 27 × 17.9 × 1.77 inches |
| Weight | ~9.36 lbs (4.25 kg) |
| Glass Surface | 1.6 mm tempered glass |
| Waterproof Rating | IP68 (panel) |
| Charge Controller | 20A PWM (included) |
| Controller Waterproof | No (avoid immersion) |
| Cables/Adapters | 5-in-1 solar cable, 10-in-1 DC adapter, SAE-Alligator clip |
| Battery Compatibility | 12V batteries (with PWM controller) |
| Use with Power Stations | Compatible via XT-60, Anderson, DC adapters |
| Warranty | 5 years (manufacturer) |
Design and Build Quality
The design blends portability with rugged materials so you can take it on the road without adding much weight.
The foldable layout and included carry bag make it easy to pack into a camper or trunk, while tempered glass aims to resist scrapes and impact better than flimsy plastics.
Foldable Form Factor and Portability
You’ll appreciate how the panel folds down to compact dimensions and weighs under 10 lbs, which is genuinely portable for one person.
The included kickstands let you prop the panel to the sun quickly, and the carry bag helps protect it in transport.

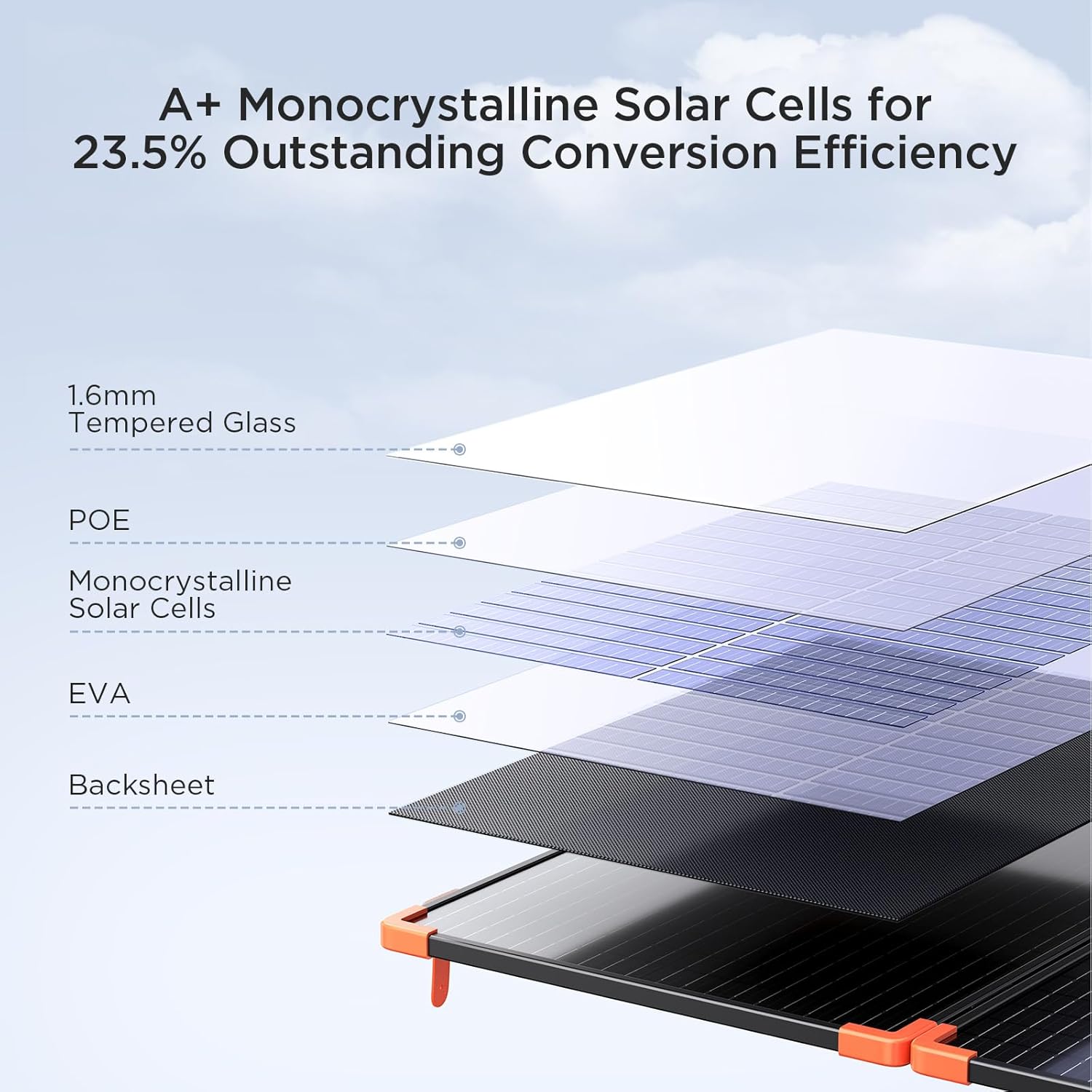

Durability: Tempered Glass and IP68 Rating
The 1.6 mm tempered glass surface gives stronger scratch and impact resistance than typical ETFE or PET sheets.
An IP68 rating for the panel body means it’s designed to resist dust ingress and long-term immersion in water; however, remember that the PWM controller is not waterproof.
PWM Controller and Safety Features
A 20A PWM controller comes with the kit so you can connect directly to 12V batteries safely.
The controller adds multiple protections to prevent battery damage and hazards while charging.
Protection Features of the 20A PWM Controller
You’ll get overcharge protection, reverse charging prevention, short-circuit protection, reverse polarity protection, and over-temperature protection.
These safeguards reduce the chance of damaging your battery or the controller itself when conditions change or wiring errors occur.
Controller Limitations: Not Waterproof
It’s important to keep the PWM controller dry and sheltered; it is not waterproof and should not be immersed or left in prolonged heavy rain.
You can still use the panel outdoors, but plan to position the controller inside your vehicle, dry storage, or a weatherproof box while running cables.
Cables, Adapters, and Compatibility
This kit aims to be flexible out of the box, so you don’t have to buy additional adapters in many cases.
The 5-in-1 solar cable and 10-in-1 DC adapter increase compatibility with popular power stations and DC input formats.
5-in-1 Cable and Common Power Station Connectors
You’ll find adapters for XT-60, Anderson, and several DC barrel sizes, covering a broad range of consumer power stations.
That versatility is convenient if you plan to charge different devices or connect to a portable battery pack without hunting down an adapter.
SAE-Alligator Clip Cable for 12V Batteries
The included SAE-Alligator cable lets you connect to 12V lead-acid batteries directly once you attach the PWM controller.
This means you can charge a camper battery, boat battery, or other 12V systems when you’re off-grid.
Performance and Real-World Charging
Understanding realistic output and expectations will help you plan devices you can run and how long charging will take.
Efficiency claims are useful, but real-world performance depends on orientation, weather, and the condition of your power station or battery.
Solar Output and Efficiency
With a high-efficiency claim of 23.5%, you’ll get more wattage for a given panel area than many budget alternatives.
Peak output occurs under ideal conditions (direct sun, correct angle, cool panel temperature); expect lower numbers on cloudy days or if the panel gets hot.
Typical Wattage You’ll See in the Field
Under strong midday sun you can often approach the panel’s 100 W rating, but partial cloud cover or suboptimal angle will drop power significantly.
Plan for average daily energy rather than peak: a 100 W panel might produce roughly 300–600 Wh per sun-hour depending on conditions and location, so estimate conservatively for planning.
Charging Times for Common Devices
You’ll be able to maintain or recharge small laptops, phones, and power stations, but charging time varies widely.
As an example, a 300 Wh power station might take 4–8 hours of good sun to fully recharge depending on conversion loss; a phone may charge multiple times per day if conditions are favorable.
Using with Power Stations and 12V Batteries
The panel is particularly convenient if you want a simple solar input solution for portable power stations or direct battery charging.
You must use the right connectors and observe controller limitations to protect your equipment.
Connecting to Power Stations
You can plug into many power stations using the included XT-60 or Anderson adapters; just match the station’s input specs to the panel’s output.
When using DC input to a power station, the built-in MPPT on the station (if present) will often be more efficient than the panel’s own PWM controller, so consider bypassing the PWM controller and using direct DC input if your power station manual allows it.
Charging 12V Batteries via the PWM Controller
Connect the PWM controller between the solar panel and battery to handle voltage regulation and battery protection.
This setup is ideal for maintaining lead-acid or AGM batteries on an RV or at a remote campsite rather than charging power stations, which often accept direct solar input.
Setup and Best Practices
A thoughtful setup maximizes energy harvest and prolongs component life.
Follow these steps and tips to get consistent performance every trip.
Quick Setup Steps
- Unfold the panel and position the kickstands toward the sun at about a 90-degree angle for best exposure.
- Check for the PWM controller and SAE-Alligator clip cable in the folded gap before you unpack the panel.
- Connect the 5-in-1 cable to the panel and attach the appropriate adapter for your power station or connect the PWM controller for battery charging.
- Secure cables to avoid tension and dampen contest of accidental unplugging while you fine-tune orientation.
Optimal Placement and Angle
You’ll want the panel facing the sun directly for as many hours as possible; morning and late-afternoon sun will yield less output than midday.
Adjust angle seasonally — flatter in summer, steeper in winter — or use a portable tilt mount to improve harvest if you’ll be in one location for several days.
Mounting and Wind Considerations
Make sure the panel is stable and won’t be flipped by wind; a few stakes or tie-downs on the carry bag can help anchor it.
The tempered glass is durable, but the panel can still be damaged by heavy impact or if it’s propelled by wind.
Maintenance and Care
Routine care will keep the panel producing well and ensure you don’t accidentally void warranty coverage.
Cleaning, storage, and inspection are simple tasks that pay off in long-term reliability.
Cleaning the Panel Surface
Use a soft cloth and mild soapy water to remove dirt and bird droppings; avoid harsh chemicals or abrasive scrubbers that could damage coating or seals.
Rinse and dry thoroughly before folding; trapped moisture between folds can accelerate wear.
Storage Tips
Fold the panel gently and store it in the provided bag when not in use; keep the PWM controller dry and inside a protective container.
Store the kit in a cool, dry place during extended off-season periods.
Inspection and Preventative Checks
Periodically inspect cables, connectors, and the controller for corrosion or damage.
Tighten loose connectors and replace cables showing wear; a damaged connector can reduce output or cause safety issues.
Troubleshooting Common Issues
If the panel isn’t producing as expected, don’t panic — many problems have simple fixes you can perform quickly.
Here are common issues you might encounter and how to resolve them.
Low Power Output
If you see lower than expected wattage, first check panel orientation, shading, and cleanliness.
Cloud cover, dirty glass, and partial shade from trees or gear make the biggest difference in immediate output.
No Output or Intermittent Output
Verify all connectors are securely attached and polarity is correct.
If using the PWM controller, confirm it’s powered and not showing fault indicators; reconnect or replace a suspect cable.
Controller or Battery Warnings
If the controller indicates over-temperature or reverse polarity, follow the manual to correct wiring or move the controller to a cooler location.
Never ignore reverse polarity warnings — they mean the battery or panel connections are reversed and can cause damage.
Pros and Cons
Balancing strengths and limitations helps you decide whether this panel fits your use case.
Here’s an honest assessment to weigh against your needs.
Pros
- High efficiency (23.5%) yields good output for size.
- Lightweight and foldable — very portable for one person.
- Wide adapter compatibility (XT-60, Anderson, multiple DC sizes).
- Includes a PWM controller with multiple protections for battery charging.
- Rugged tempered glass and IP68 waterproof rating for the panel itself.
- Comprehensive accessory package reduces need for extra purchases.
Cons
- PWM controller is not waterproof — requires careful placement.
- PWM charging is less efficient than MPPT in many conditions, which may reduce battery charging performance.
- Panel can’t store electricity — you’ll need a battery or power station to store power.
- Performance drops in hot temperatures; glass will help but efficiency is affected by heat.
Who Should Buy This Panel
This product fits you well if you need a portable, robust panel that works directly with power stations or 12V systems and you value convenience.
It’s ideal for campers, RVers, weekenders, and anyone wanting a lightweight panel to maintain batteries or supplement a power station while off-grid.
Who Might Look Elsewhere
If you require the absolute fastest battery charging under variable conditions, consider panels with an included MPPT charge controller or pairing this panel directly with a power station that has MPPT input.
If you need fully waterproof electronics or long-term exposure without shelter for the controller, you’ll want a different setup that either includes a waterproof controller or has the controller integrated into a waterproof housing.
Comparison and Alternatives
When comparing, check whether other panels include MPPT controllers, lighter materials, or different connector bundles.
Competitors may offer similar wattage at lower cost but with lower efficiency, thinner glass, or fewer adapters.
How This Panel Stacks Up
- Efficiency: Higher than many budget options (23.5% vs 15–20%).
- Durability: Tempered glass and IP68 panel rating are strong positives.
- Value: Includes many adapters and a controller, making it strong for plug-and-play use.
Final Verdict and Buying Advice
If you want a compact, durable, and versatile 100 W solar solution to keep devices and batteries topped up while traveling, this panel covers many bases well.
You’ll get excellent portability, a solid accessory bundle, and strong build quality, with the caveat that the PWM controller is not waterproof and won’t match MPPT efficiency.
Warranty and Support
You’ll receive a 5-year warranty from the manufacturer (ZOUPW) along with 24/7 customer support, which is reassuring for long-term use.
Keep your purchase documentation and register the product if the manufacturer recommends registration for warranty activation.
Tips to Get the Most from Your Panel
- Always locate the PWM controller and SAE-Alligator cable in the folded gap when unpacking.
- Use the panel in full sun with the kickstands positioned perpendicular to the sunlight for best output.
- Place the PWM controller in a dry, ventilated spot away from direct exposure to rain.
- Consider pairing the panel directly with a power station that has MPPT for improved efficiency if your power station accepts direct solar input.
- Anchor the panel in windy conditions to prevent damage from movement.
Frequently Asked Questions (FAQ)
You’ll likely have some practical questions before buying — these answers address common concerns.
Can the panel store energy?
No — the panel generates electricity but does not store it. You must connect it to a power station or a battery system to store energy.
Is the PWM controller waterproof?
No — the PWM controller included is not waterproof. Keep it away from immersion and prolonged rain exposure.
Will it work with my power station?
Most likely yes, thanks to the 5-in-1 cable which includes XT-60 and Anderson connectors commonly used by many power stations. Double-check your station’s accepted input connectors and voltage range.
How do I charge a 12V battery?
Place the PWM controller between the panel and the battery, using the SAE-Alligator clip cable for the battery connection. Follow the controller manual to set the proper battery type or charging mode if configurable.
Can I use this in heavy rain or snow?
The panel is IP68 rated, so it tolerates moisture and immersion, but you should shield the PWM controller and connectors. Avoid leaving the controller exposed to heavy rain or snow.
Final Notes
You’ll find this 100 Watt Portable Solar Panel a capable, travel-friendly solution if you need a balance of efficiency, portability, and ruggedness.
By following setup and care recommendations and keeping the controller dry, you’ll get reliable performance that enhances your camping, RVing, or portable power setup.
